vGauge Specifications |

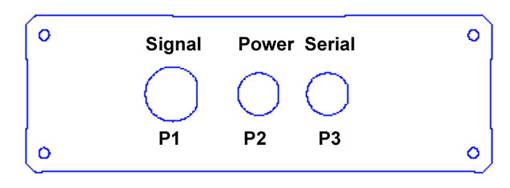

Back Panel |
|
Connector |
Function |
Pins |
|
P1 |
Signal |
9 |
|
P2 |
Power |
6 |
|
P3 |
Serial |
8 |
|
SIGNAL (P1) |
|||||||||
|
Pin |
Color |
Name |
Function |
|
Pull-Up Ω |
|
Pull-Down Ω |
|
Series Ω |
|
1 |
Red/Black |
A0 |
TEMP1 |
R36 |
1000 |
R26 |
- |
R16 |
- |
|
2 |
Red |
A3 |
TEMP2 |
R35 |
1000 |
R25 |
- |
R15 |
- |
|
3 |
Green |
A1 |
TEMP3 |
R34 |
1000 |
R24 |
- |
R14 |
- |
|
4 |
White/Black |
A7 |
VOLT1 |
R33 |
- |
R23 |
1000 |
R13 |
5000 |
|
5 |
Blue |
A4 |
VOLT2 |
R32 |
- |
R22 |
1000 |
R12 |
5000 |
|
6 |
Orange |
A6 |
VOLT3 |
R31 |
- |
R21 |
1000 |
R11 |
5000 |
|
7 |
Orange/Black |
A5 |
PSI1 |
R30 |
51 |
R20 |
- |
R10 |
- |
|
8 |
Black |
A2 |
PSI2 |
R37 |
51 |
R27 |
- |
R17 |
- |
|
9 |
Green/Black |
|
Ground |
|
- |
|
- |
|
- |
|
POWER (P2) |
||||
|
Pin |
Color |
Function |
Direction |
Volt |
|
1 |
Black |
Ground |
OUT |
0 |
|
2 |
- |
Not connected |
- |
- |
|
3 |
Orange |
Alarm |
OUT |
0-3.3 |
|
4 |
Green |
Pulse |
IN |
0-3.3 |
|
5 |
Red |
Power |
IN |
12-14 |
|
6 |
White |
VREF |
OUT |
3.3 or 5 |
|
SERIAL (P3) |
||||
|
Pin |
Color |
Function |
Direction |
Volt |
|
1 |
Grey |
BTPOWER |
OUT |
3.3 |
|
2 |
Brown |
Flash TX |
OUT |
0-3.3 |
|
3 |
Brown |
Serial RX |
IN |
0-3.3 |
|
4 |
Yellow |
Serial Ground |
IN |
0 |
|
5 |
Red |
Serial TX |
OUT |
0-3.3 |
|
6 |
Red |
Flash RX |
IN |
0-3.3 |
|
7 |
Green |
DEBUG |
IN |
0-3.3 |
|
8 |
Yellow |
Flash Ground |
IN |
0 |
