vDash Specifications |
Virtual Dashboard Utility for PC |
| Digital Dial |
|
| A 16 segment dial with needle rotating around perimeter as signal increases. A 4 character digital readout of sensor values is in the center and a user defined sensor label is below. Dial face changes color to indicate warning conditions | |
| Large Dial |
|
| A 24 segment dial with a fill bar rotating around perimeter as signal increases. A 4 character digital readout of sensor values is in the center and a user defined sensor label is below. Dial face changes color to indicate warning conditions | |
| Digital Data |
|
| A 8 character user defined sensor label and a 4 character sensor readout from calibration table | |
| Vertical Bar |
|
| A 20 segment vertical Bar Graph with large numerical readout and sensor label. Dial face changes color to indicate warning conditions | |

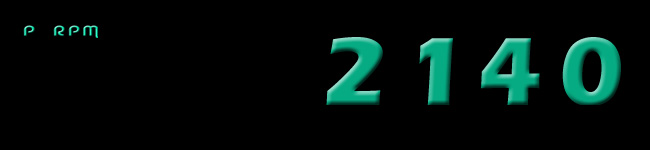

| Huge Data |
|
| A 8 character user defined sensor label and a Huge 6 character sensor readout from calibration table. | |
| Bar Graph |
|
| A 8 character user defined sensor label and a 4 character sensor readout from calibration table followed by a 20 segment bar graph as signal increases | |
| Histogram |
|
| A 8 character user defined sensor label and a 4 character sensor readout from calibration table Histogram is a 200 segment bar graph. Colors indicate sensor level changes over time. |
