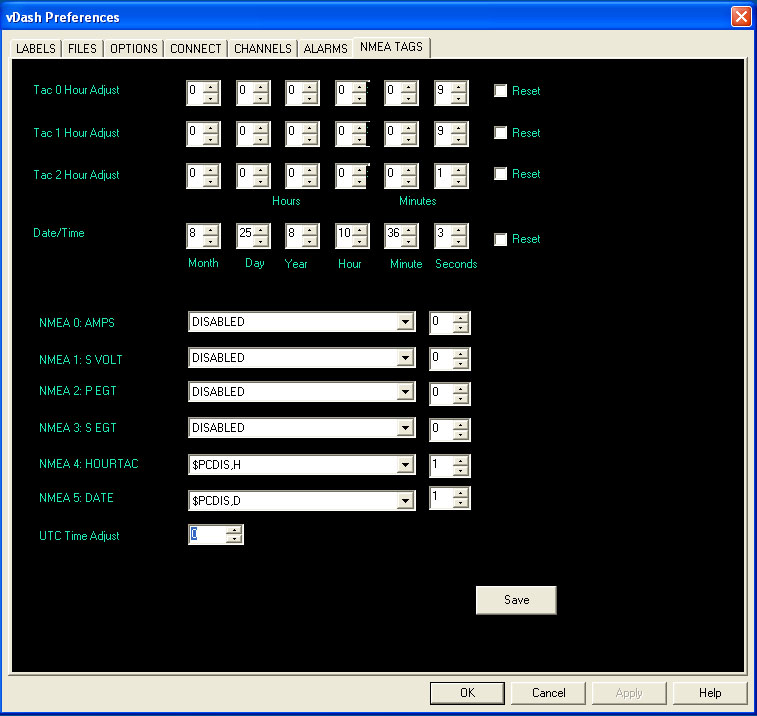

The NMEA Preferences panel allows configuration of several NMEA 0183 inputs for display such as SONAR DEPTH, SPEED, COMPASS HEADING and more

User defined NMEA tags can be selected for data parsing. Drop-down menus pick the tag while the number represents location index within the tag to extract data field. If displaying UTC time, an optional hour offset can be added to adjust for local time.

Tachometer Hours are stored in non-volatile memory and keep track of engine run time. The initial hours can be rest to desired values.

A real-time clock stores date and time information in non-volatile memory. Initial Date and Time can be entered to reset clock..
